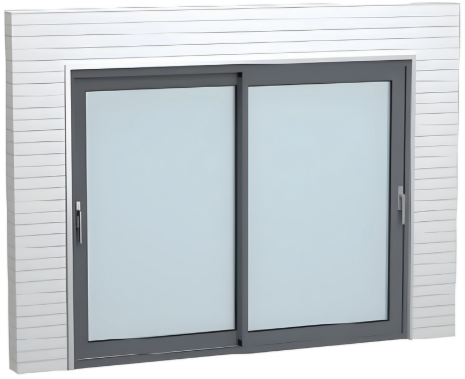

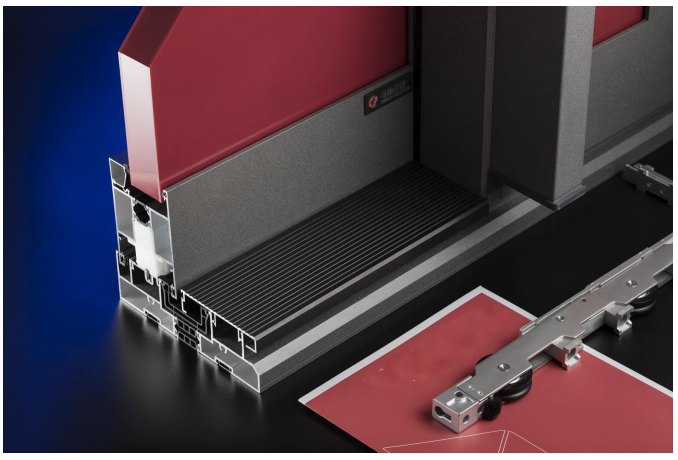

ZL-170DB Thermal Break Aluminum Lift & Slide Door System

Product Details

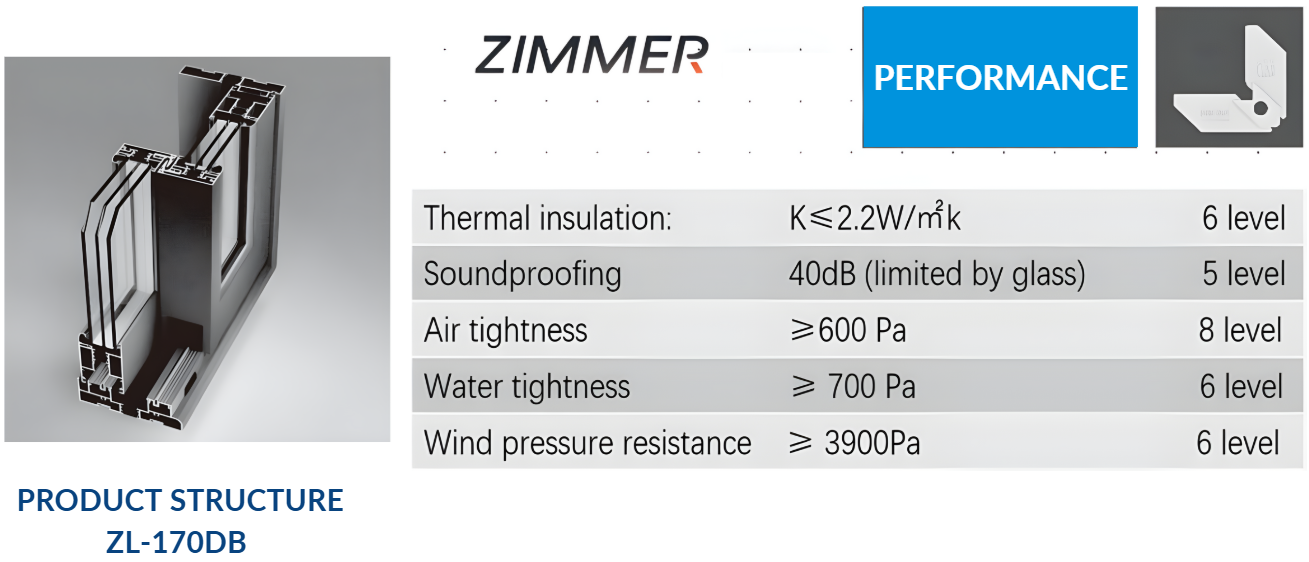

Quality Warranty:3 years
Thermal insulation:K≤2.2W/㎡k
Soundproofing:40dB(limited by glass)
Air tightness:≥600Pa
Water tightness:≥700Pa
Wind Pressure resistance:≥3900Pa






The lift & slide mode breaks through the sealing and sound insulation limitation of sliding window & door products.

The fan load-bearing capacity reach more than 350kg, and size limitation reaches more than 3000mm.

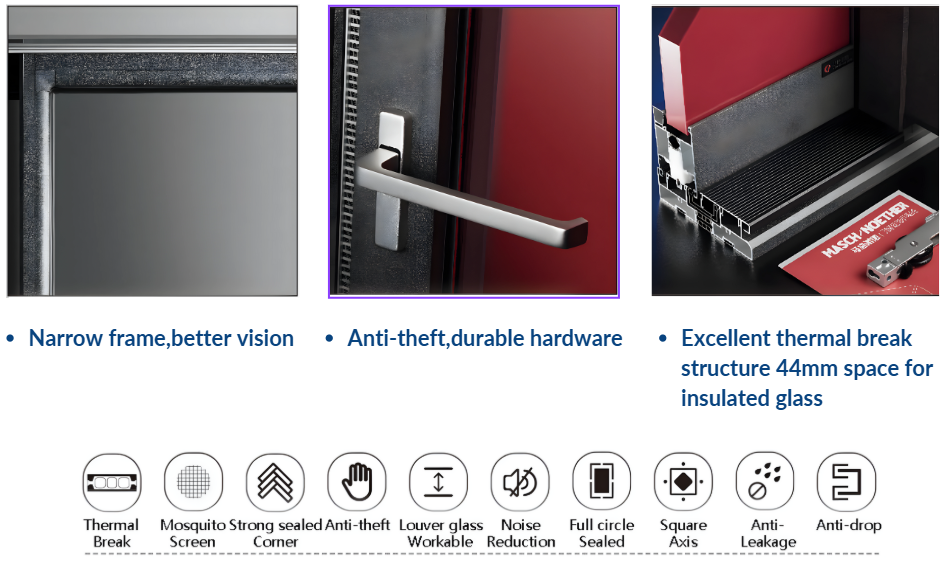

Excellent frame stability, strong system coners and connection, assure high anti-breaking strength which reaches 4200N.

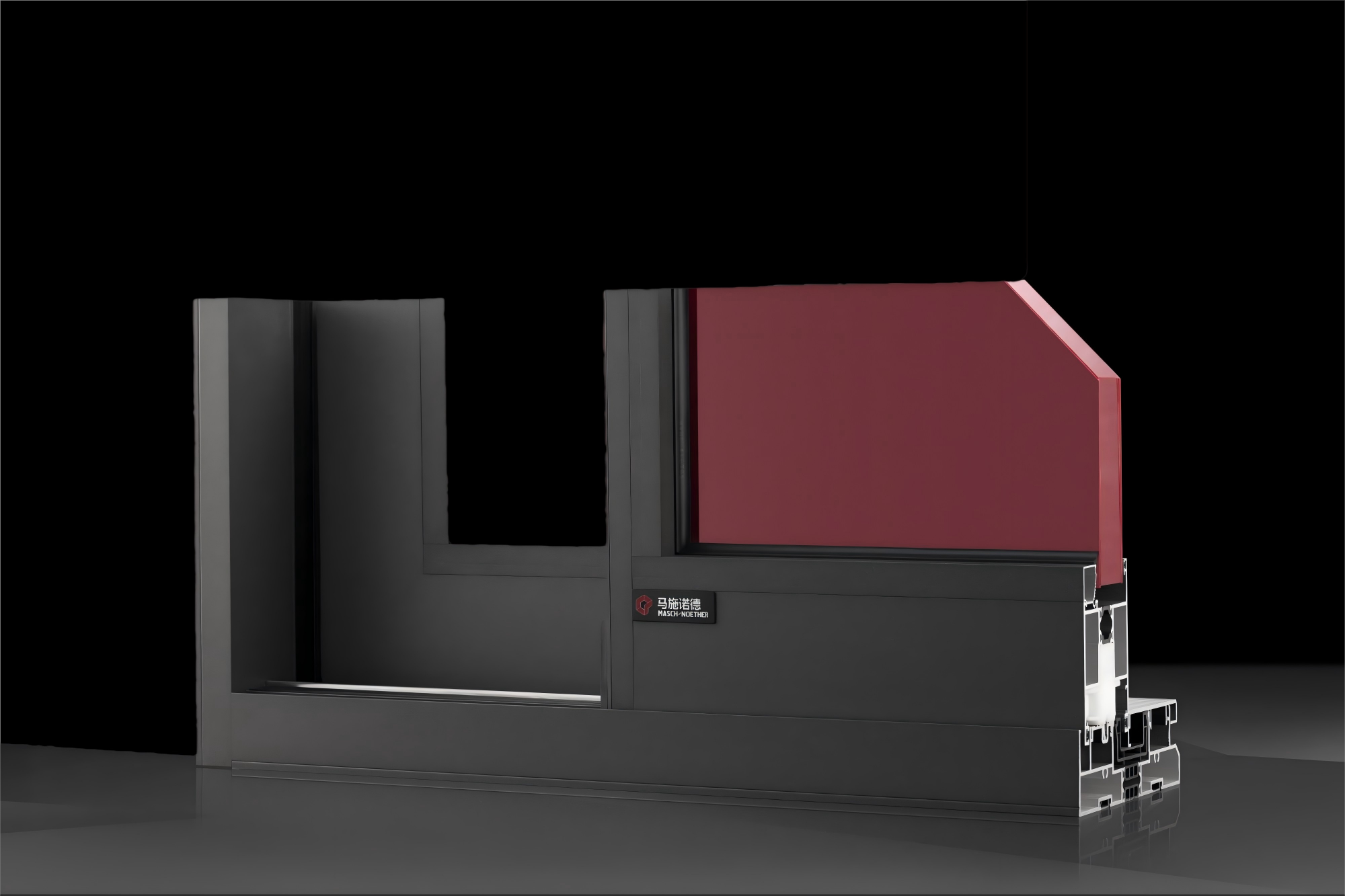

Split-level drainage structure and barrier layer structure, effectively avoid wind whistle in high floor and water leakage.

Symmetrical structure door fan, and stainless steel sliding rail make sure the sliding and pulling smooth and durable.

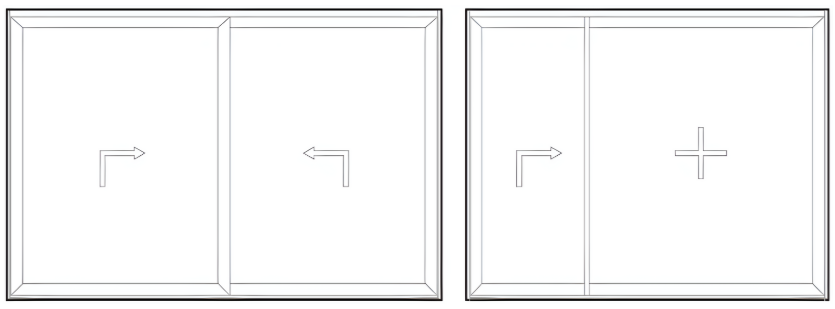

                    SWITCHING MODE:





FAQ

1. What is your MOQ for doors and windows?
We accept both trial orders and bulk orders. For small orders, production and packing costs are usually higher, and color options are normally limited to our standard finishes. Custom colors are generally available for larger volume orders.

2. Can I order samples before placing a bulk order?
Yes. We can provide corner samples for checking material, finish, and workmanship. Trial orders are also available for customers who would like to evaluate product quality before mass purchase.

3. Do your doors and windows come with frames for installation?
Yes. All our doors and windows are supplied with frames for wall installation. Necessary accessories and silicone can also be provided to support efficient installation on site.

4. Do you offer doors and windows with mosquito screens?
Yes. We can supply doors and windows with high-quality integrated mosquito screens. This option can be customized according to different project requirements and market preferences.
