ZO-60DB/ZE-60DB Thermal Break Aluminum Sliding Window System

Location：Home >>products >> Windows & Doors

Color

Size

Customized

Product Details

Quality Warranty：3 years

Thermal insulation：K≤2.3W/㎡k(Upgraded glass)

Soundproofing：≥32dB(Water-tight threshold)

Air tightness：/

Water tightness：≥700Pa

Wind Pressure resistance：≥5000 Pa

ZO-60DB平开门(1).jpg ZO-60DB平开门(2).jpg ZO-60DB平开门(3).jpg

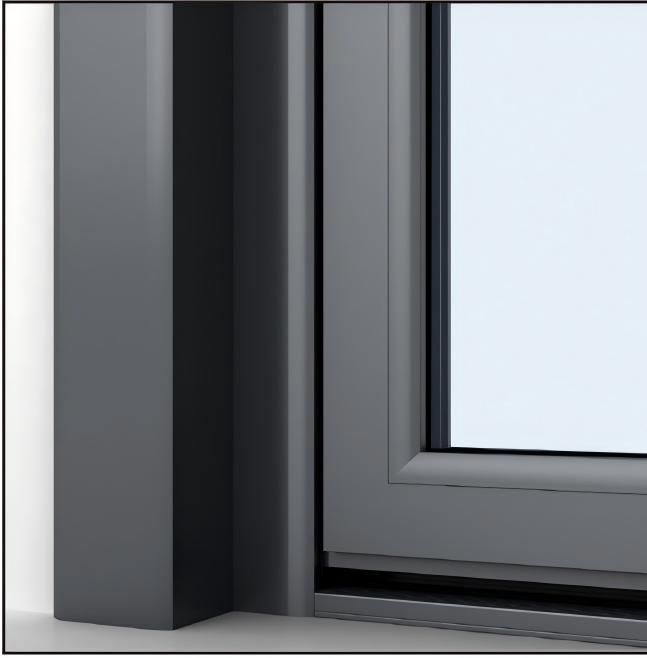

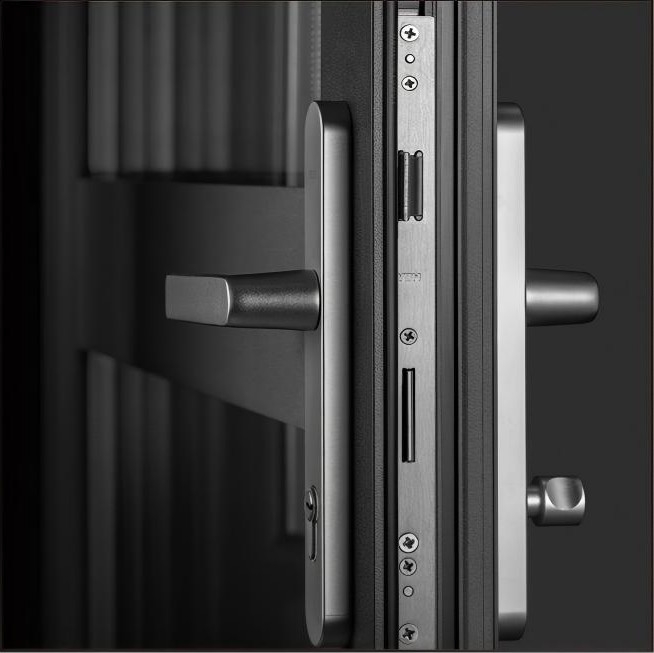

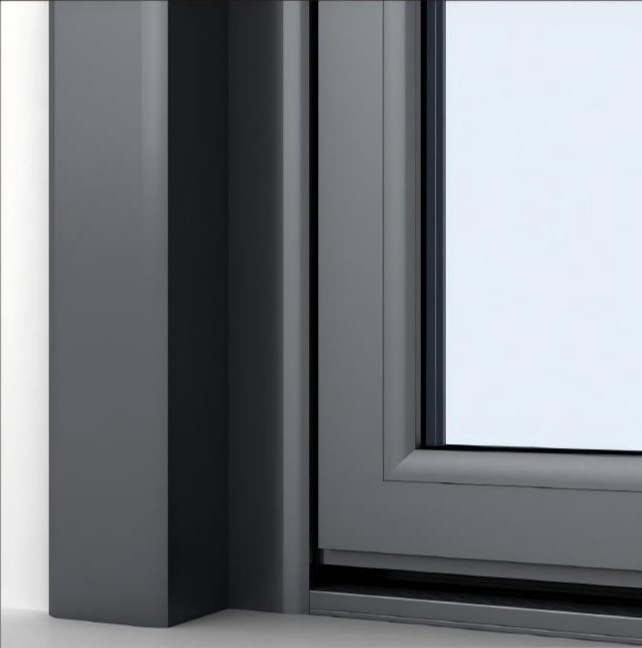

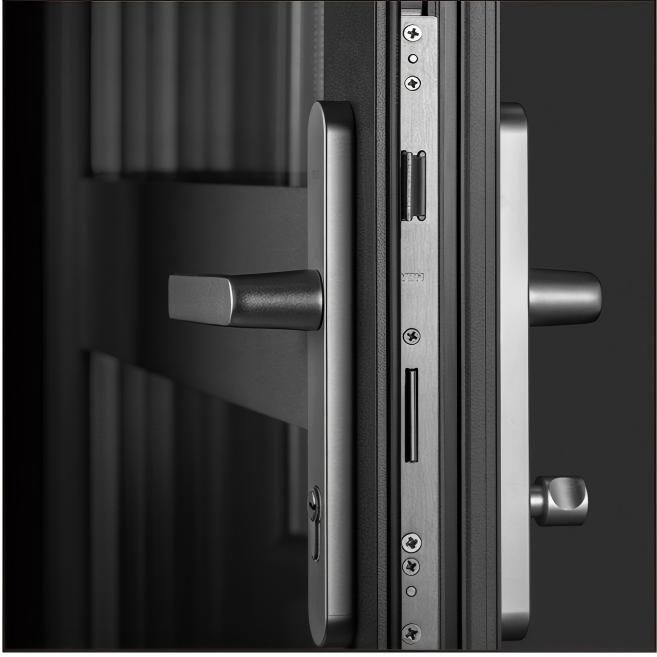

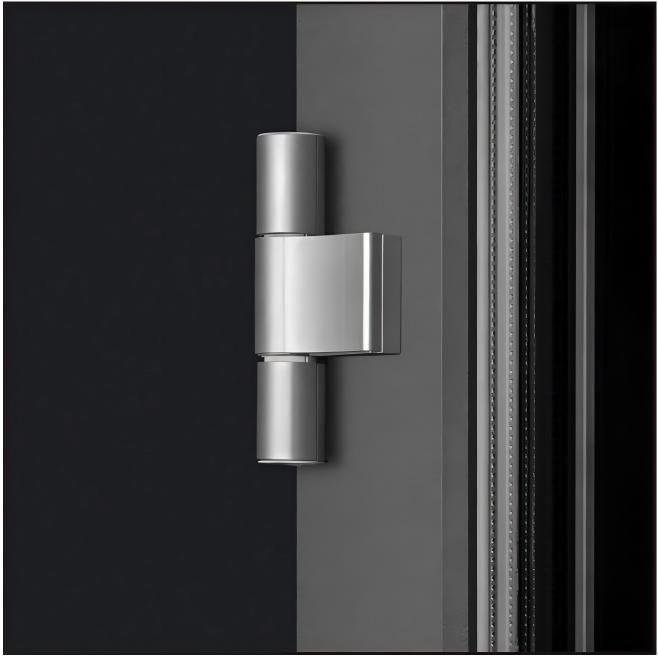

Multi-point locking system Optional door casing & high Standard cylindrical hinges

enhanced anti-pry security water-tight threshold or optional clamp hinges

Main Perfomance

Thermal insulation	K≤2.3W/㎡k(Upgraded glass)	6 level
Soundproofing	≥32dB(Water-tight threshold)	3 level
Air tightness	/	8 level
Water tightness	≥700Pa	6 level
Wind pressure resistance	≥5000 Pa	9 level

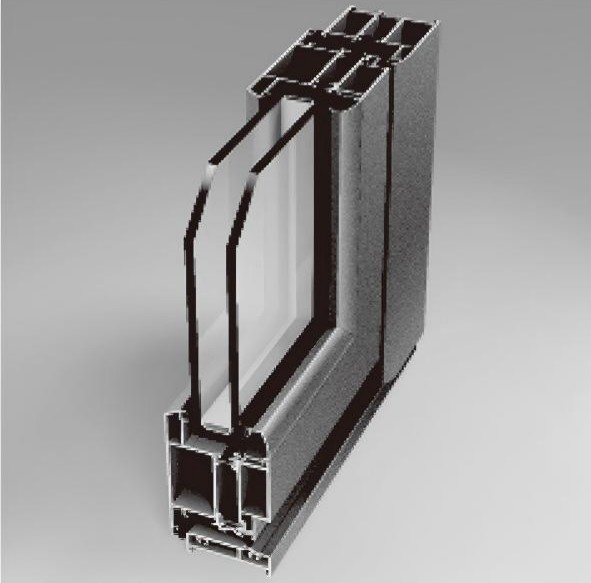

l Reinforced glass overlap chamber design improves door strength and impact resistance during opening and closing.

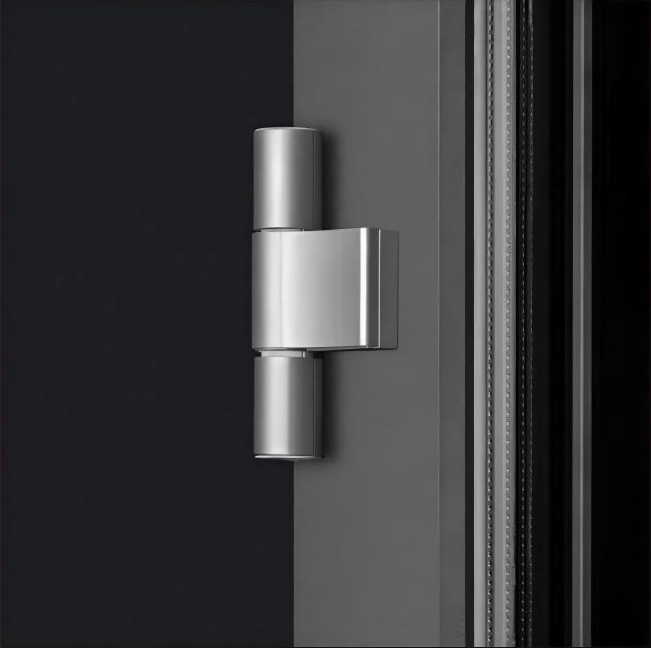

l Clamp-mounted hinges with strengthened profile grooves provide 3D adjustment and better load-bearing performance.

l High-strength corner joints, reinforced frame structure and high water-tight threshold improve stability and sealing.

l Security insect screens, insulated blind glass, electric locks, door closers, fingerprint locks and motorised door options are available for project configuration.

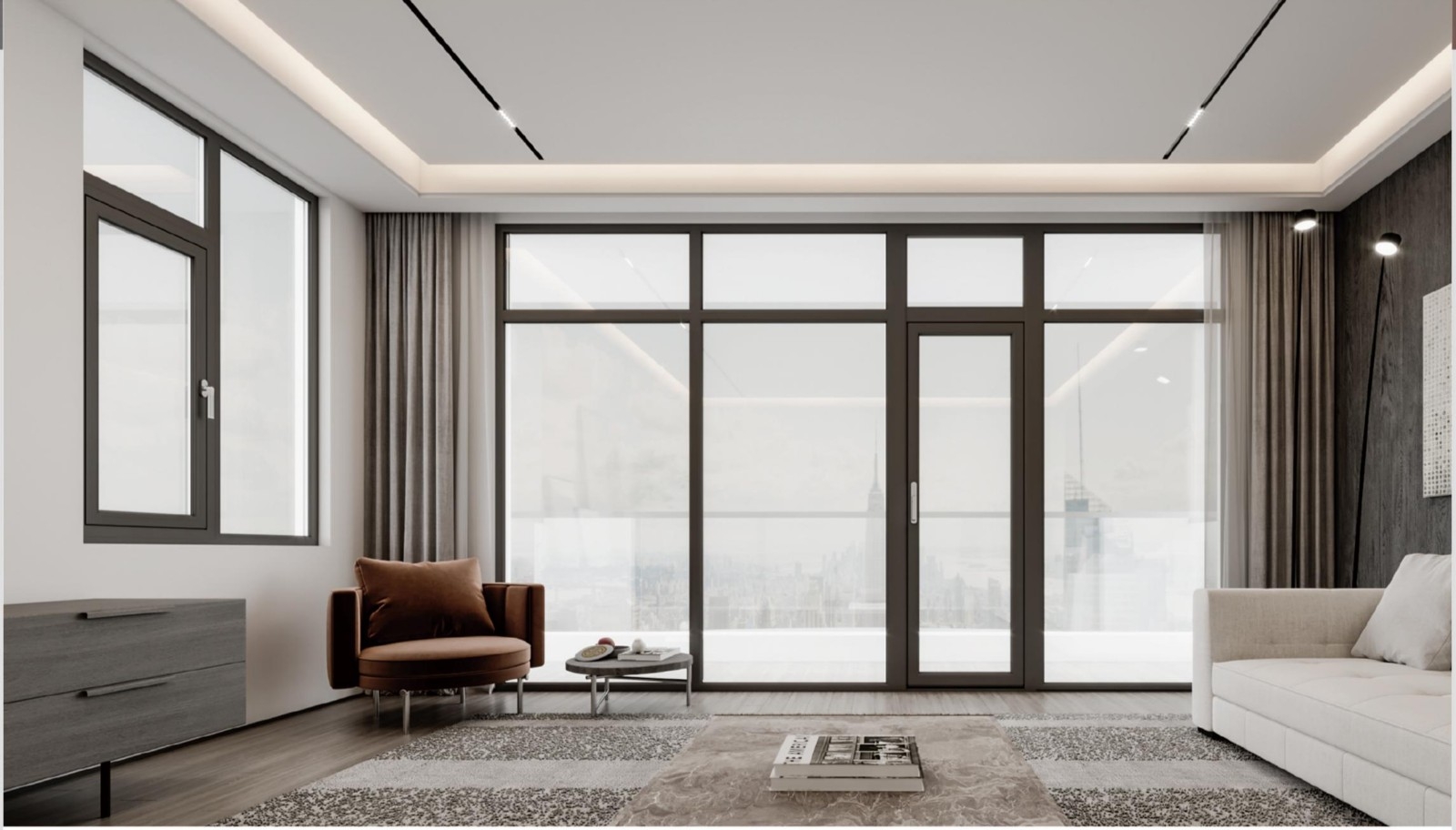

l Supports inward/outward opening and single/double door configurations, with seamless connection to fixed panels or matching windows.


Thermal Anti-theft Srong sealed Complete Louver glass Square axis Caveity Mosquito

Break Corners Jointing Workable Strengthened Screen

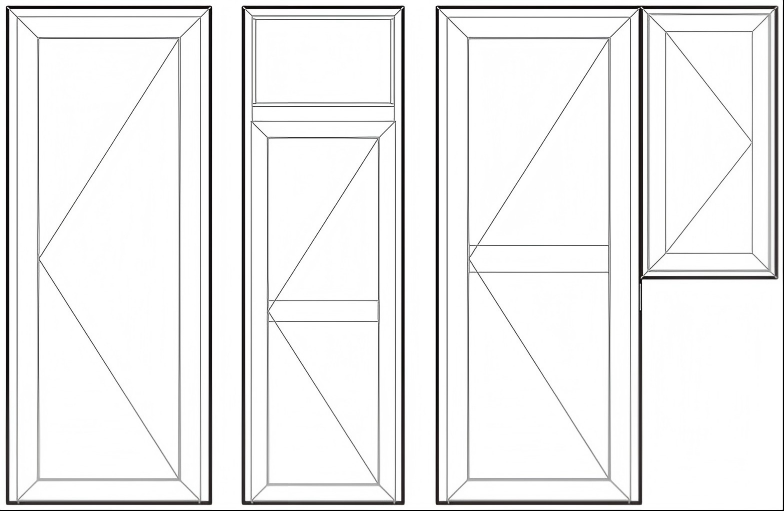

SWITCHING MODE:


FAQ

1. What is your MOQ for doors and windows?
We accept both trial orders and bulk orders. For small orders, production and packing costs are usually higher, and color options are normally limited to our standard finishes. Custom colors are generally available for larger volume orders.

2. Can I order samples before placing a bulk order?
Yes. We can provide corner samples for checking material, finish, and workmanship. Trial orders are also available for customers who would like to evaluate product quality before mass purchase.

3. Do your doors and windows come with frames for installation?
Yes. All our doors and windows are supplied with frames for wall installation. Necessary accessories and silicone can also be provided to support efficient installation on site.

4. Do you offer doors and windows with mosquito screens?
Yes. We can supply doors and windows with high-quality integrated mosquito screens. This option can be customized according to different project requirements and market preferences.
